Accessing the Device Console Page

To setup the WAN port of the device, you can access the Device Console Page to check its status and make necessary configurations.

Steps to Access the Console Page

  1. Enter the Device IP Address
    Open a web browser and enter the IP address of the device (The IP Gateway address should follow the format: 192.168.33.33). This will open a sign-in portal to access the device status. The credentials are:

    • If you cannot obtain the device's IP address through DHCP, you can statically set the IP address of the device:
      • IP Address: 192.168.33.XX (anything except 33.33)
      • Subnet Mask: 255.255.255.0
      • Gateway: 192.168.33.33




Username: root (or) ray

Password: MAC address of the device without Colon .


2.Log in to the Console Page:
      Once the sign-in portal appears, enter the required credentials.

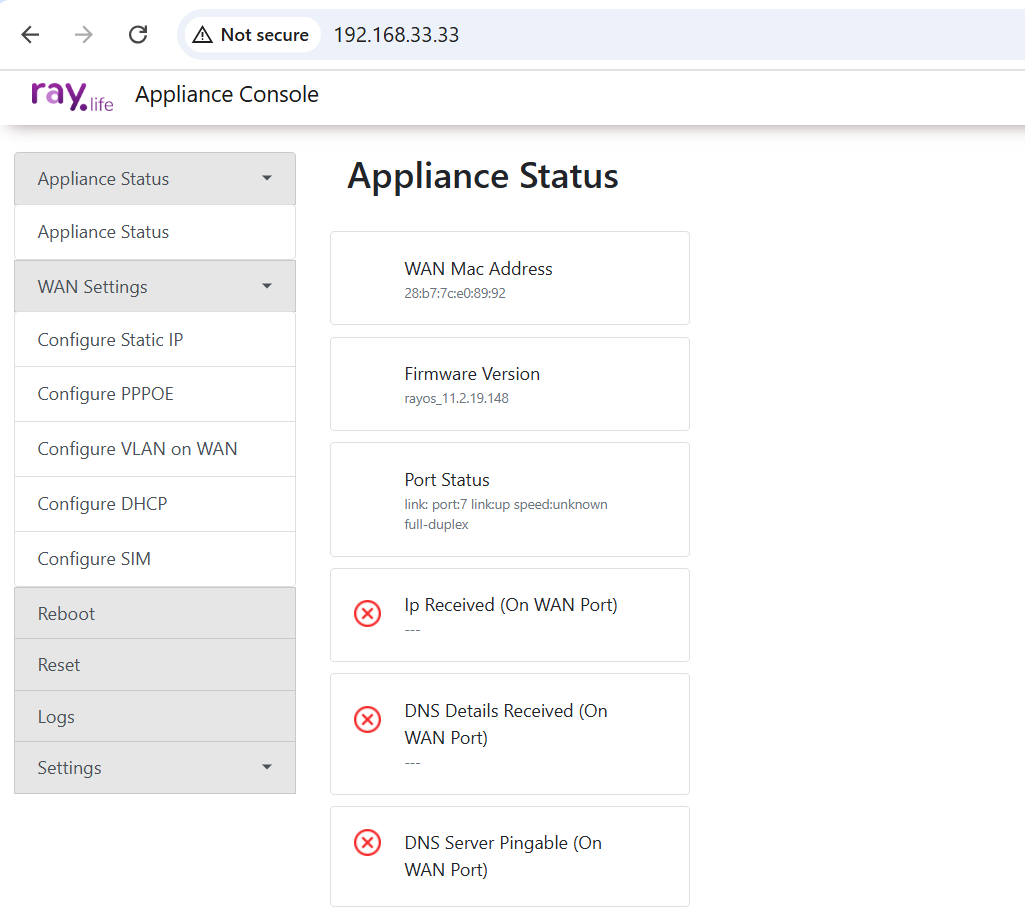

3.Console page:                                                                                                                                                            After logging in, you can view the device status and configure it according to your Requirements. Refer to the image below for an example of the sign-in portal.
