SCENARIO : Increasing & Decreasing Tx Power Levels

CATEGORY : RF Tuning

PURPOSE / USE CASE : Adjust coverage or reduce interference

STEPS TO TEST : Increase/decrease power, check RSSI



RF tuning (Radio Frequency tuning) refers to the process of optimizing your wireless network’s radio settings to ensure the best possible performance, coverage, and stability. It involves adjusting channel selection, transmit power, channel width, and other RF parameters to minimize interference and maximize efficiency.

RSSI is a measure of the strength of a wireless signal that a device receives from an access point (AP). It plays a critical role in Wi-Fi performance, roaming, and troubleshooting.

HOW IT WORKS:

Step 1:

Onboard RAY Access Point in RAY cloud controller.

Step 2:

Configure Desired Network Interface and WLAN (SSID).

Step 3:

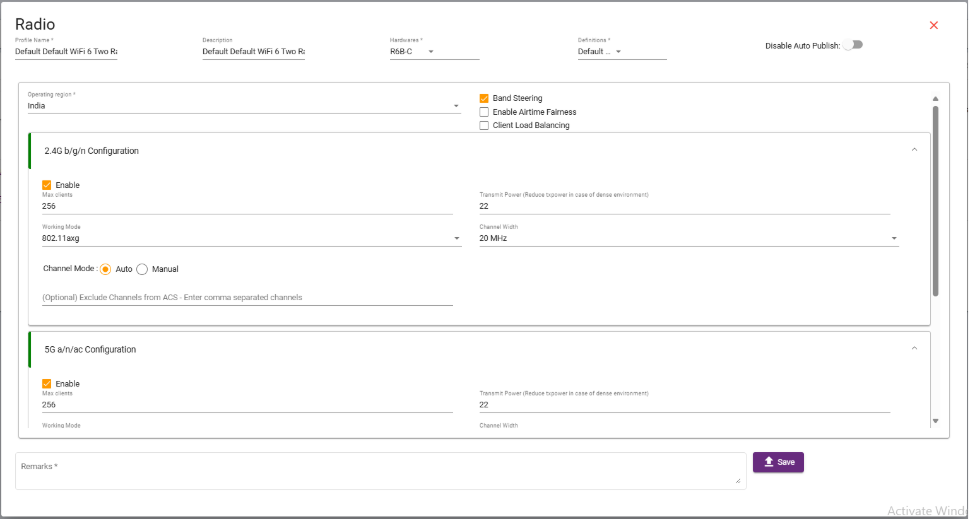

To Adjust coverage, we can create RADIO PROFILE and can adjust Transmission power and channel width according to user requirement.







TYPICAL RSSI RANGES (in dBm):

RSSI (dBm)

Signal Quality

What It Means

–30 to –50

Excellent

Very strong signal (near the AP)

–51 to –60

Very Good

Ideal for high-bandwidth apps (video, gaming)

–61 to –70

Good

Usable for most tasks; may affect real-time apps

–71 to –80

Fair

Low speeds, increased latency

–81 to –90

Poor

Likely to drop or disconnect

< –90

Unusable

Basically no usable connection

Note: RSSI is negative in dBm. Closer to zero is stronger (e.g., –45 dBm is better than –75 dBm).





KEY RF TUNING PARAMETERS:

Parameter

What It Does

Best Practice

Channel Selection

Determines which frequency the AP uses

Use non-overlapping channels (2.4 GHz: 1, 6, 11)

Channel Width

Controls how much spectrum the AP uses (20/40/80/160 MHz)

Use 20 MHz in 2.4 GHz, 40 or 80 MHz in 5 GHz (depending on density)

Transmit Power

Controls how far the signal reaches

Match power to environment; avoid overpowering

Band Steering

Pushes dual-band clients to 5 GHz

Enable in most modern networks

Airtime Fairness

Prioritizes faster clients

Enable if supported

Minimum RSSI / Client Threshold

Forces clients to roam if signal drops below a threshold

Helps improve roaming behavior

Load Balancing

Distributes clients between APs

Helps avoid overcrowded APs
