Lab Scenario

A small organization wants to segregate its network users into multiple VLANs for security and management purposes. Each VLAN is mapped to a dedicated SSID so that wireless users automatically connect to the correct network segment.

The goal of this lab is to configure multiple VLANs and multiple SSIDs on a network consisting of one Gateway, one Switch, and one Access Point (AP).


Requirements :

  • Each department or user group should have a dedicated VLAN.

  • Each VLAN should be assigned a separate IP pool from the Gateway.

  • The Switch should carry all VLAN traffic between the Gateway and the Access Point.

  • The Access Point should broadcast multiple SSIDs, each mapped to a specific VLAN.


VLAN–SSID–Subnet Mapping :

SSIDVLANGateway IPSubnet (assumed)
Guest1010.10.10.110.10.10.0/24
Employee2010.20.20.110.20.20.0/24
VIP3010.30.30.110.30.30.0/24
Finance4010.40.40.110.40.40.0/24


Devices in the Lab :

  • Gateway – Provides WAN connectivity (connected to ISP) and handles VLAN creation and IP pools.

  • Switch – Passes VLAN traffic between Gateway and AP.

  • Access Point – Broadcasts multiple SSIDs, each tagged with its respective VLAN.


Objective :

By the end of this lab, the network should have:

  • Four VLANs (10, 20, 30, 40) created on the Gateway and Switch.

  • Four SSIDs (Guest, Employee, VIP, Finance) configured on the AP, each mapped to its VLAN.

  • Devices connecting to SSIDs should receive IP addresses from the correct VLAN subnet and be isolated from other VLANs.




Step-by-Step GATEWAY Configuration :


Step 1:
Onboard the Gateway and connect its WAN interface to the ISP.


Step 2:
Connect the Gateway’s LAN-1 port to the Switch.

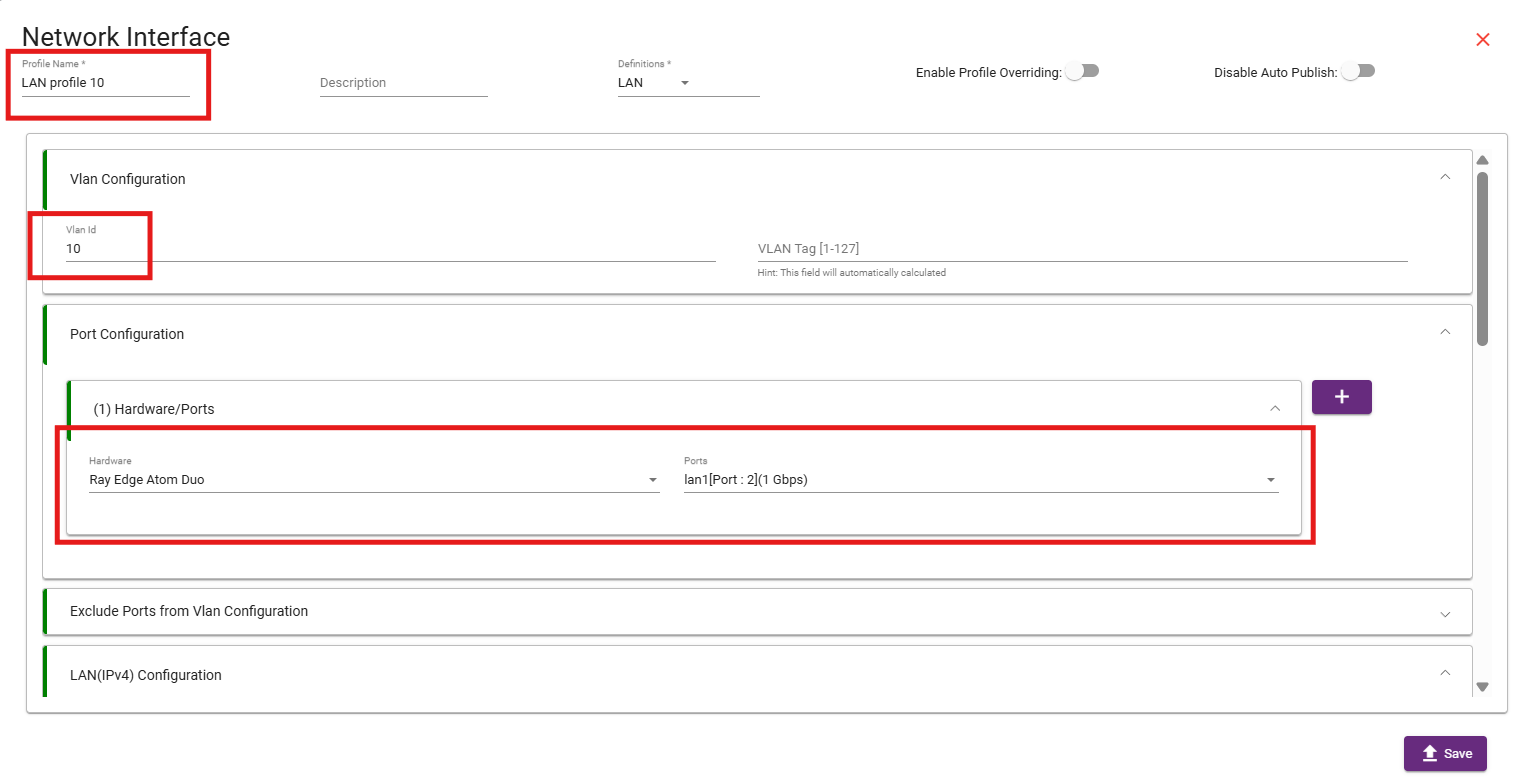

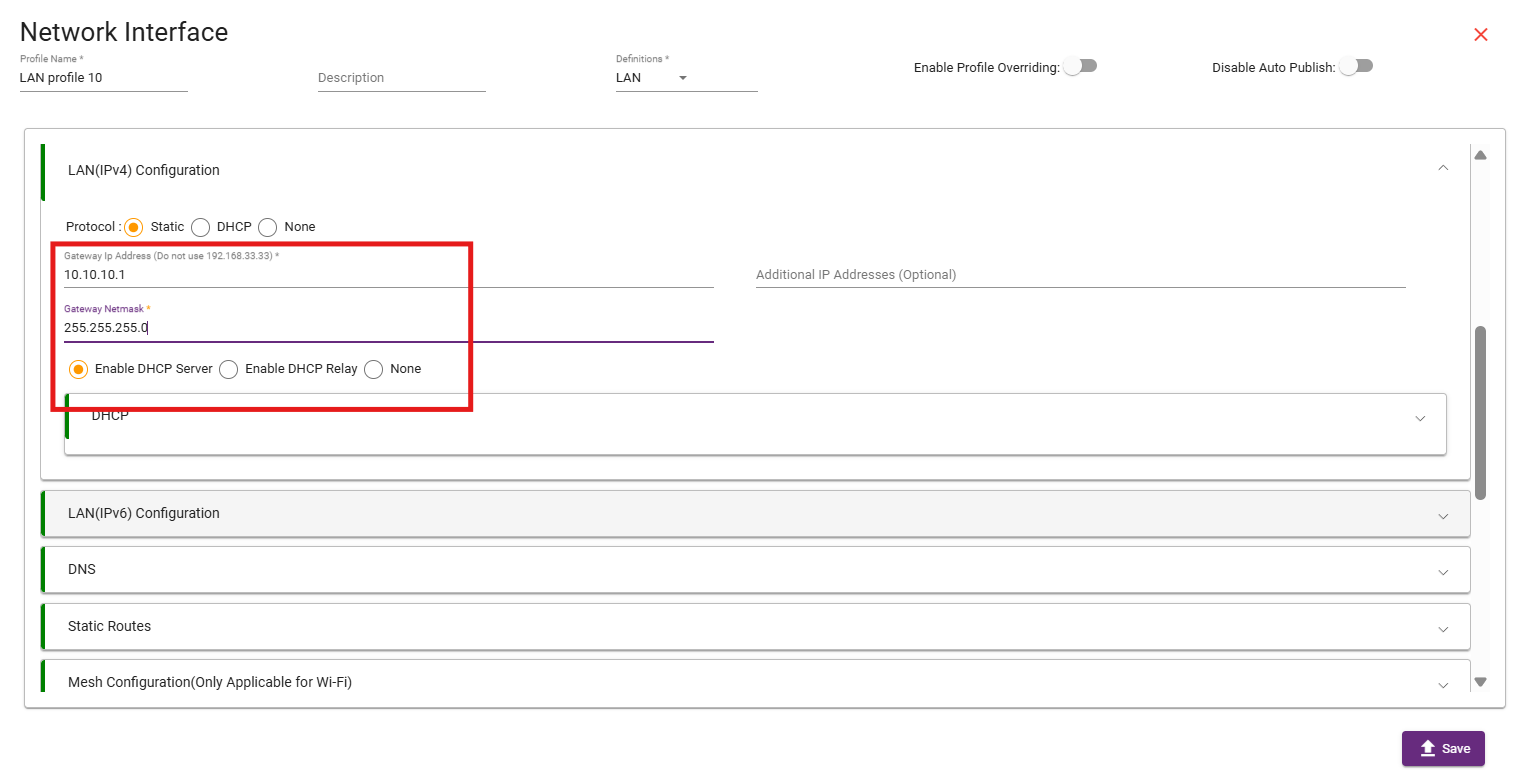

  • Go to Network Interface settings and create VLAN 10 under VLAN Configuration.

  • In the Port Configuration section, select LAN-1 to allow the Gateway to pass VLAN 10 traffic through that port.



STEP 3:

Enter the IP pool you want to assign to that VLAN.


STEP 4:

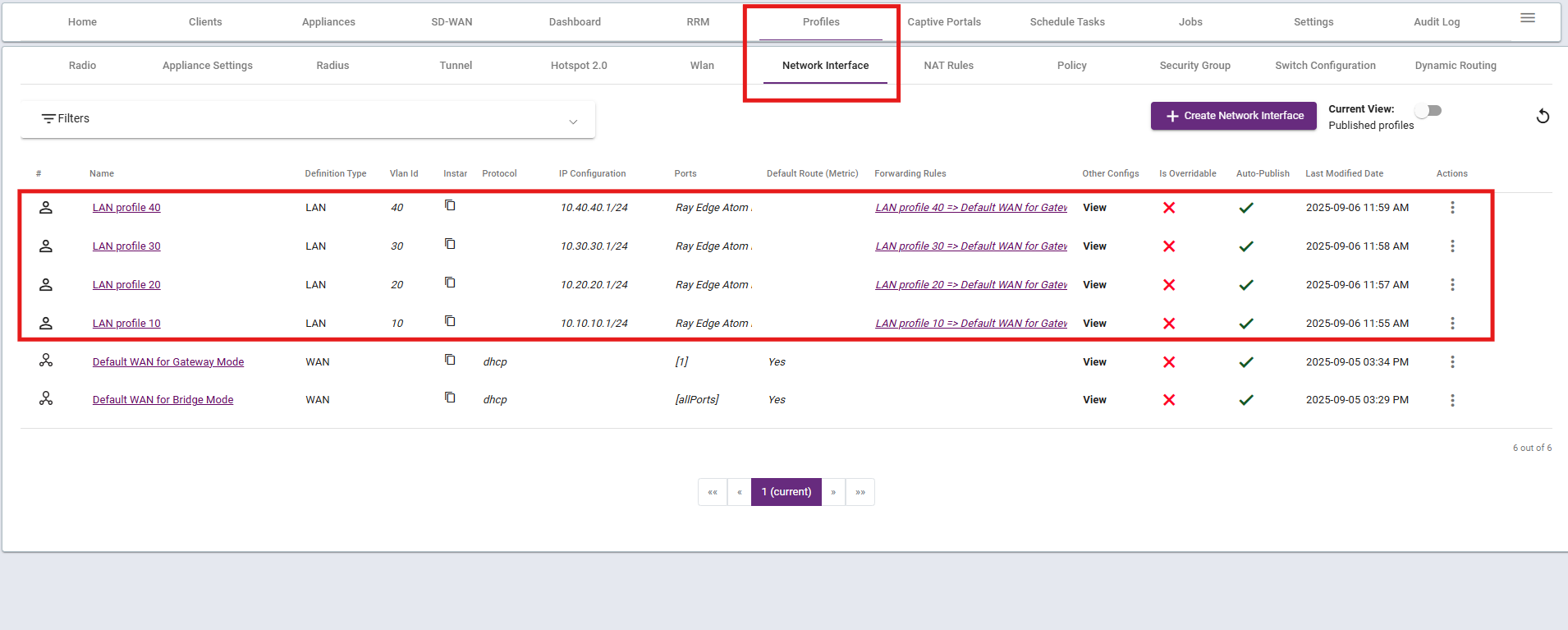

Repeat the same configuration for VLANs 20, 30, and 40 as done for VLAN 10.




Step-by-Step SWITCH Configuration :


Step 1:

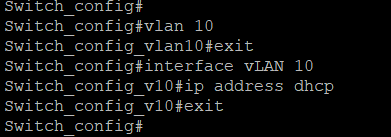

  • Configure all required VLANs in switch and assign them IP addresses.
  • Instead of manually configuring static IPs, we will let the switch obtain IP addresses automatically from the Gateway’s DHCP server.



  • This ensures that the switch gets an IP in the 10.10.10.0/24 subnet (from the Gateway configuration), allowing it to communicate with devices and the Gateway in VLAN 10.
  • The same steps should be repeated for VLANs 20, 30, and 40 so that each VLAN interface receives an IP from the Gateway automatically.


Step 2:



  • Connect any port of Switch to  Gateway’s LAN-1 port so that it can pass all VLANs. Here we are taking port 0/16 of switch.
  • Suppose SWITCH's PORT 0/16 with GATEWAY's LAN-1.

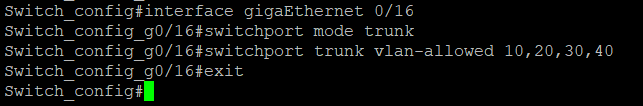

  • Configure PORT 0/16 as TRUNK and allow all VLANs (10,20,30 and 40).




Step 3:


  • Connect any port of Switch to  AP's WAN port so that AP can get online.
  • Suppose SWITCH's PORT 0/15 with AP WAN.

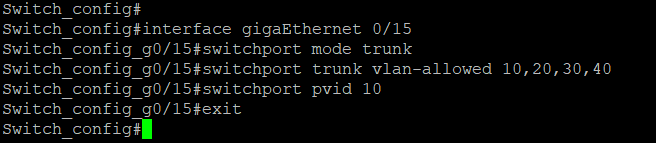

  • Configure PORT 0/15 as TRUNK and allow all VLANs (10,20,30 and 40).
  • For getting AP online, here we need to define any VLAN as a native.
  • Taking VLAN 10 as a NATIVE for getting AP IP from it.




Step 4:

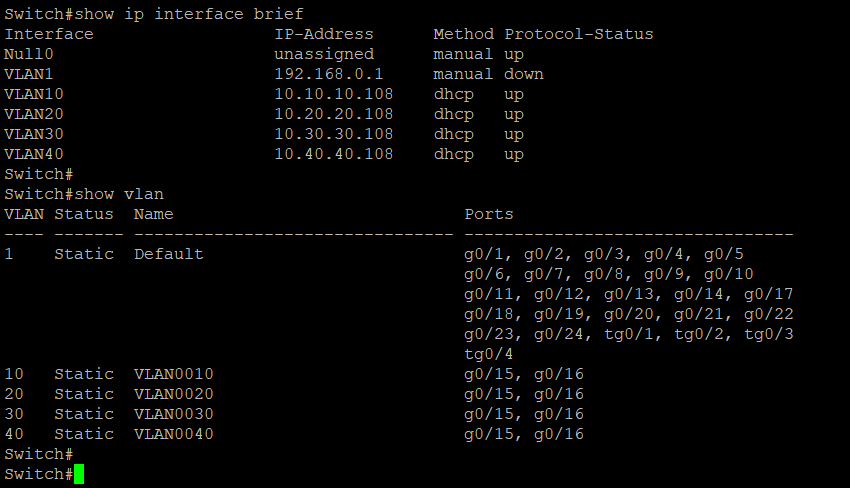

Check VLAN's are created as required and they are getting IP from the given IP pool.





Step-by-Step AP Configuration :


STEP 1:

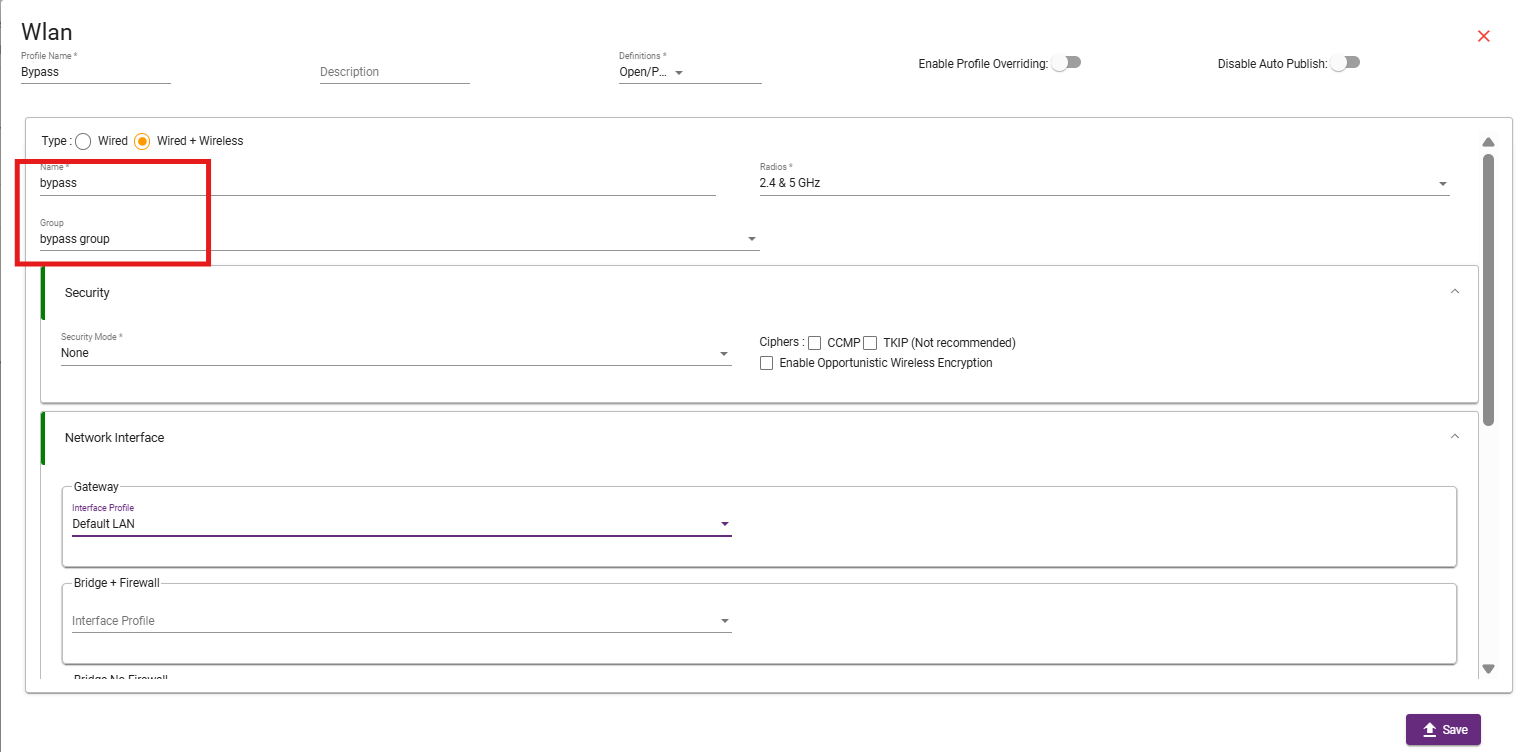

  • For getting AP online, we need to create bypass policy.

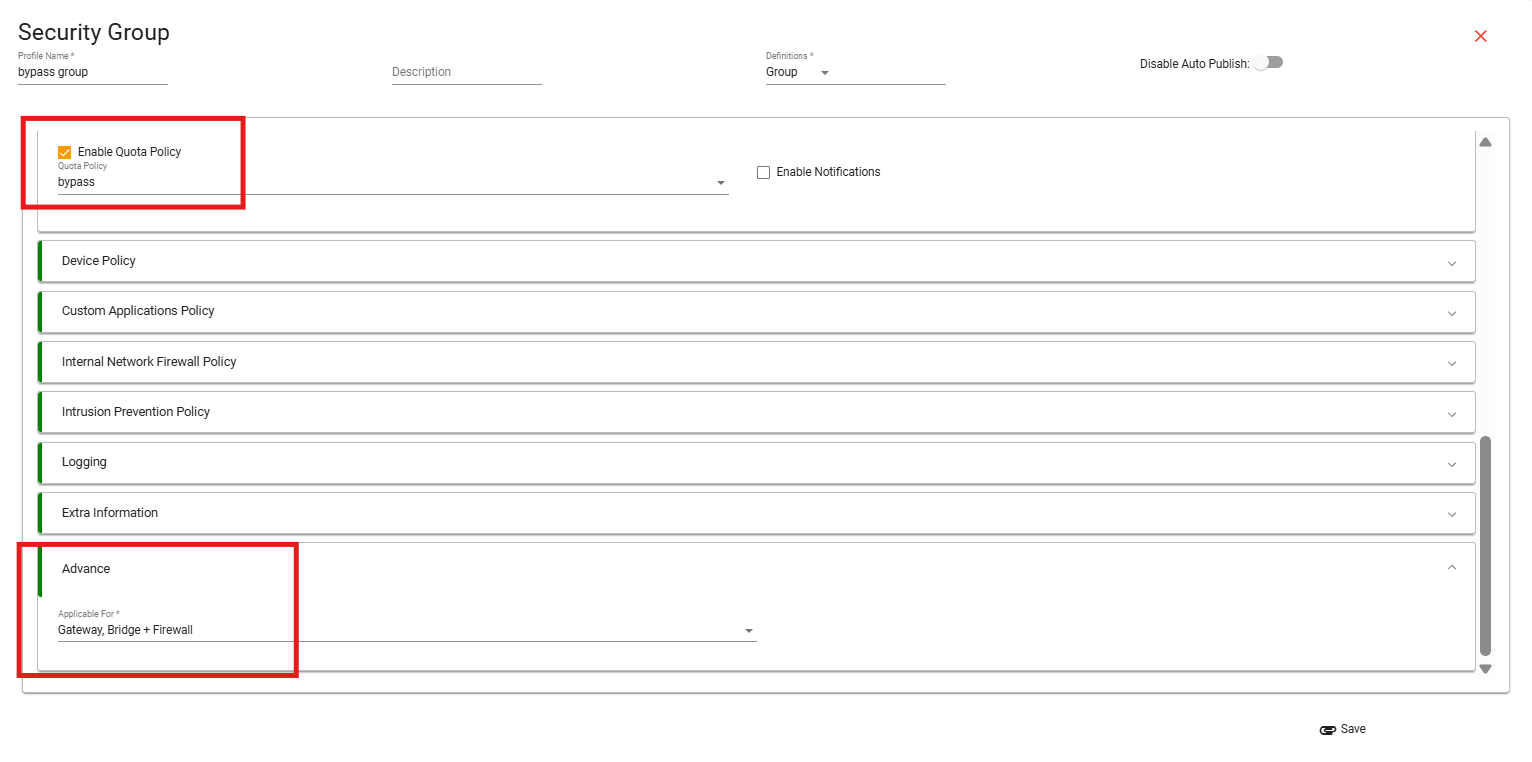

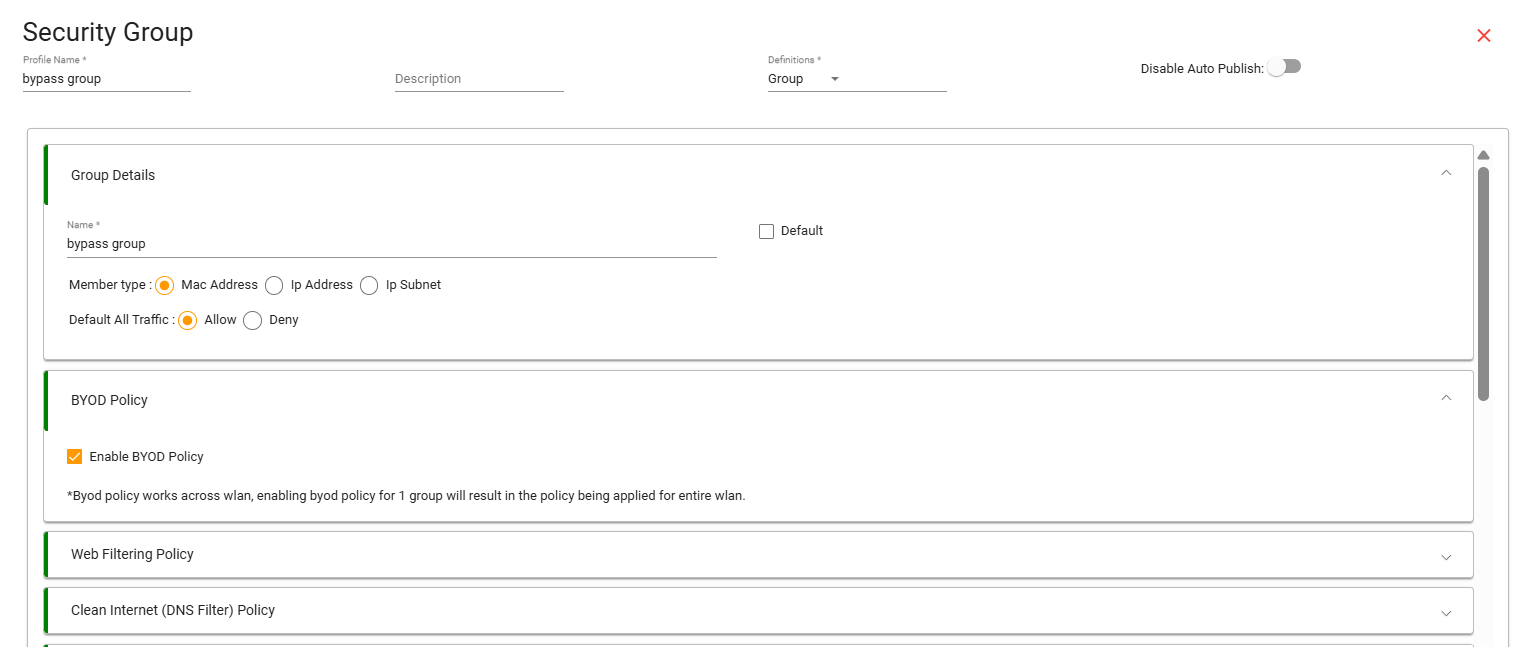

  • Create QUOTA policy, attached it into security policy and enable BYOD in security group.


  • Attached Security group in WLAN.



STEP 2:

  • Go to Client, click on assign group. Assign Bypass group to AP's MAC.



STEP 3:

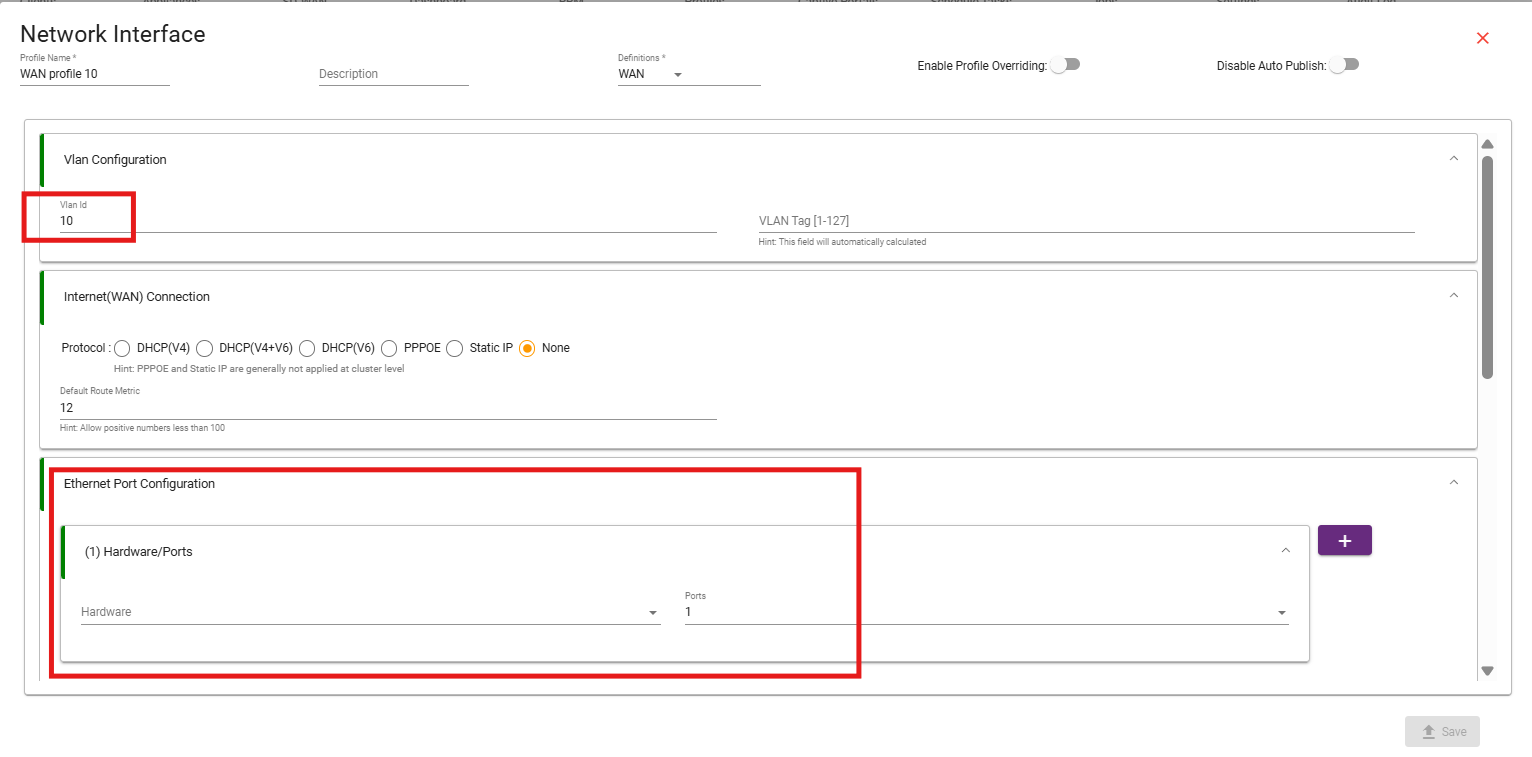

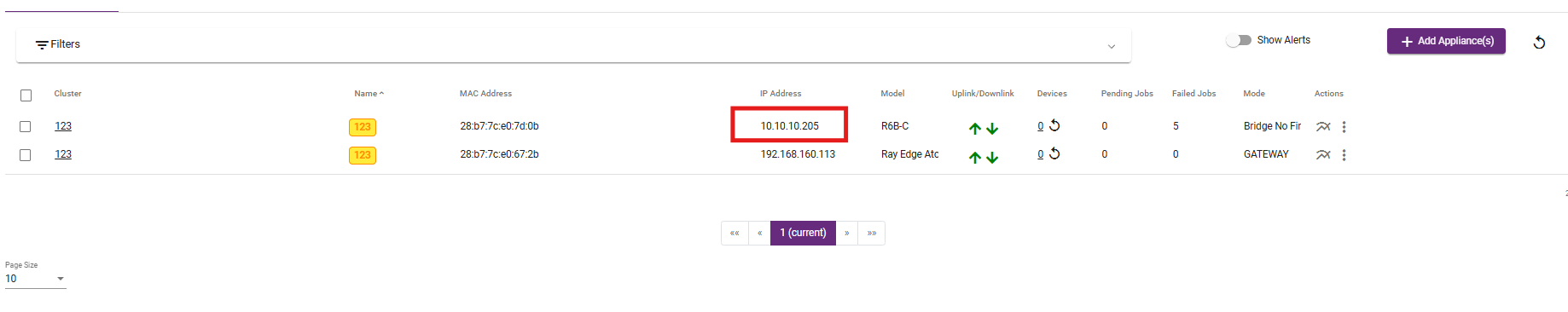

  • Define WAN for AP with VLAN 10 (Because we have select VLAN 10 as a native).
  • AP will get IP from VLAN 10 and gets online.

  • Ap will get online.




STEP 4:

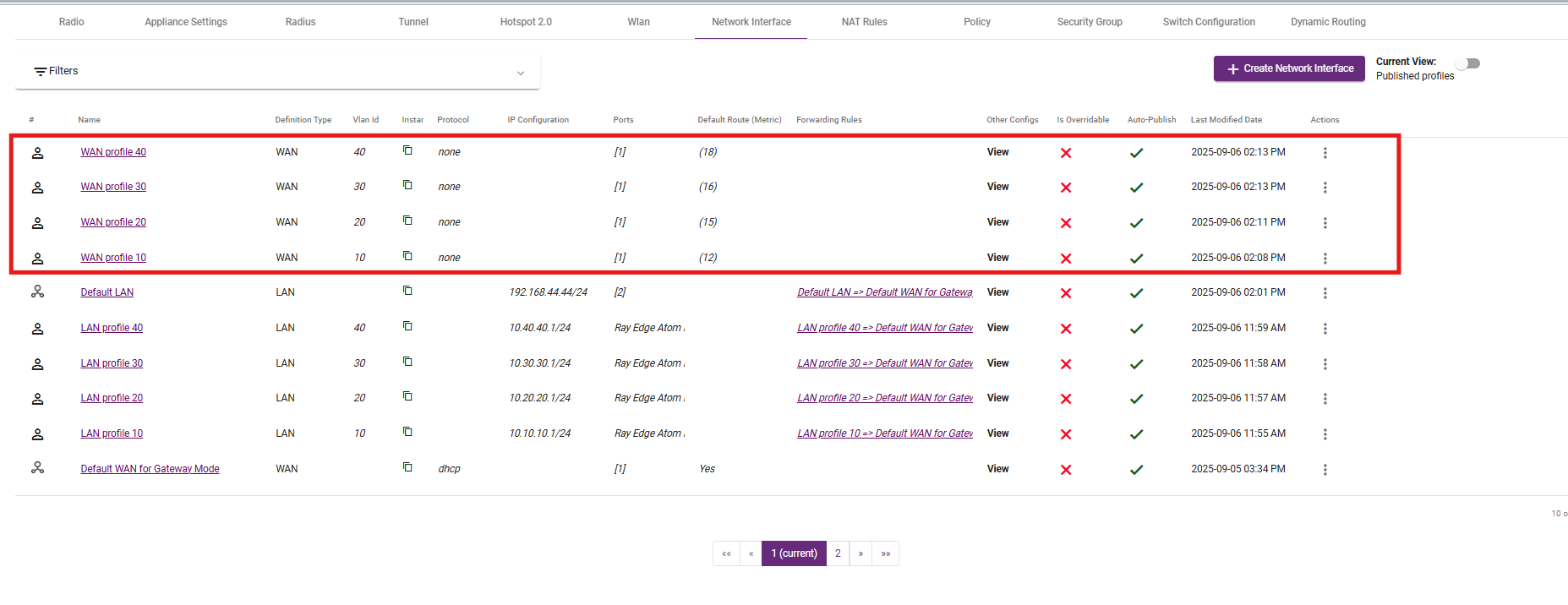

  • After AP gets online configure WAN policy for all VLAN's same as we have done for VLAN 10.





Step-by-Step WLAN (SSID) Configuration :

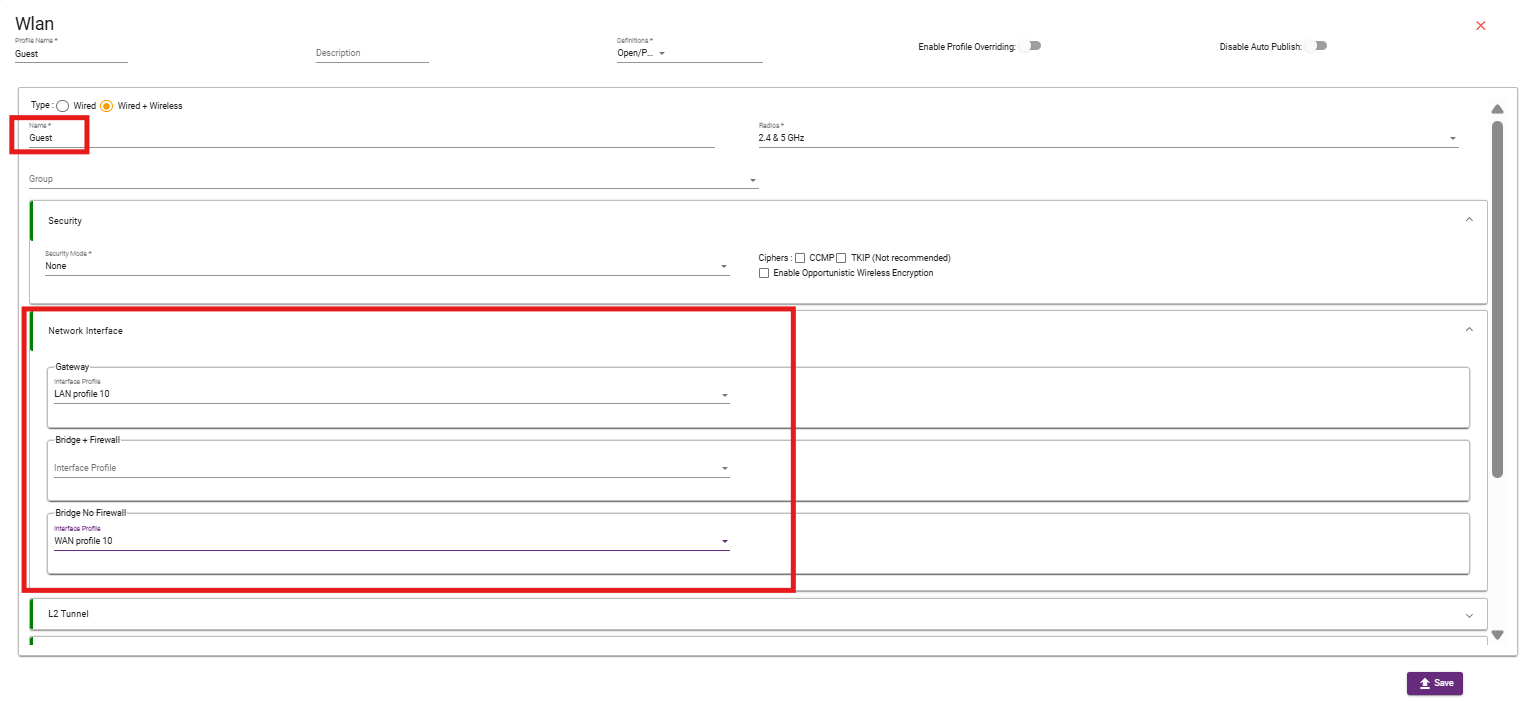

STEP 1: Guest SSID (VLAN 10)

  •  Create WLAN with the desired name (Guest).
  • Select Security Group.
  • In NETWORK INTERFACE select GATEWAY's ( LAN profile ) in gateway section and AP's ( WAN profile ) in Bridge No firewall section. Select both profile of VLAN-10.
  • Both profile should be of same VLAN which have to be broadcast.

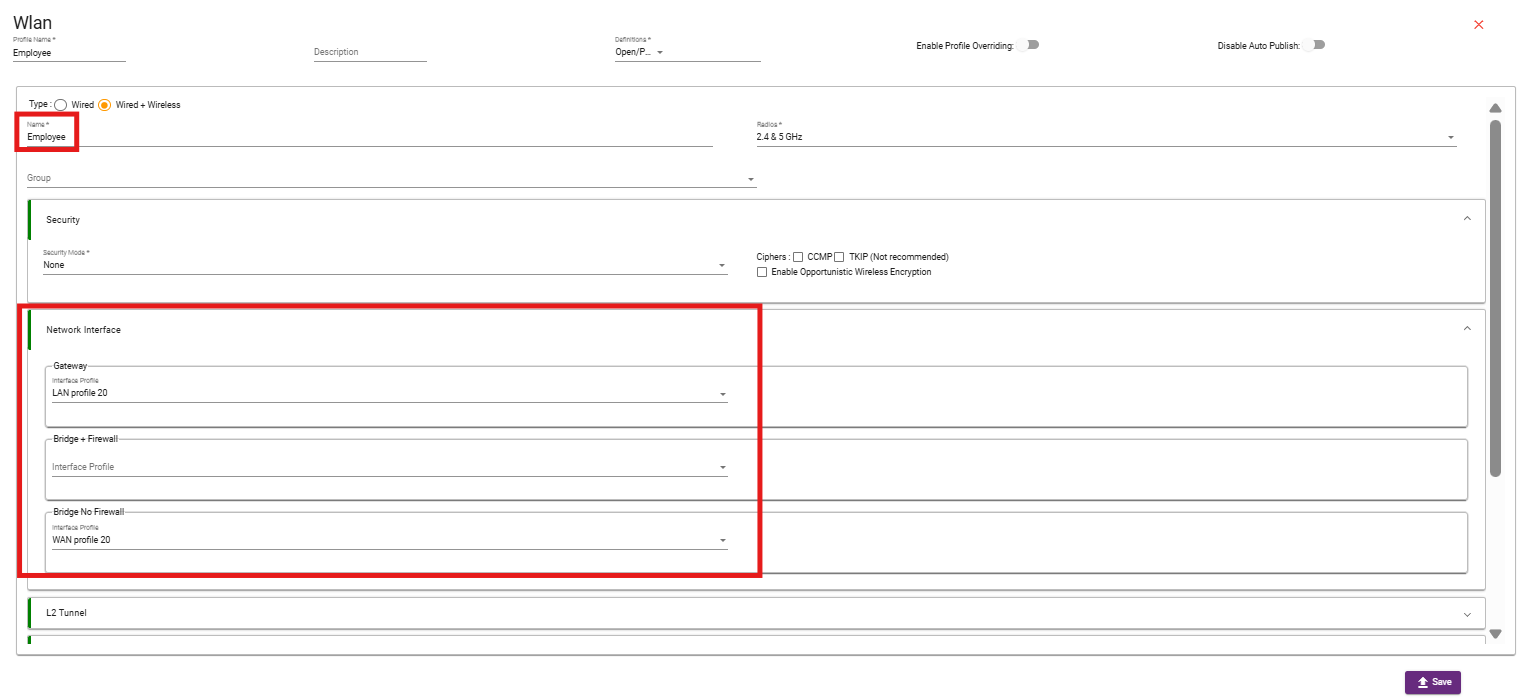

STEP 2: Employee SSID (VLAN 20)

  • Create WLAN with the desired name (Employee).
  • Select Security Group.
  • In NETWORK INTERFACE, select GATEWAY’s (LAN profile) in the gateway section and AP’s (WAN profile) in the Bridge No Firewall section. Select both profiles of VLAN-20.
  • Both profiles should be of the same VLAN that has to be broadcast.

STEP 3: VIP SSID (VLAN 30)

  • Create WLAN with the desired name (VIP).
  • Select Security Group.
  • In NETWORK INTERFACE, select GATEWAY’s (LAN profile) in the gateway section and AP’s (WAN profile) in the Bridge No Firewall section. Select both profiles of VLAN-30.
  • Both profiles should be of the same VLAN that has to be broadcast.

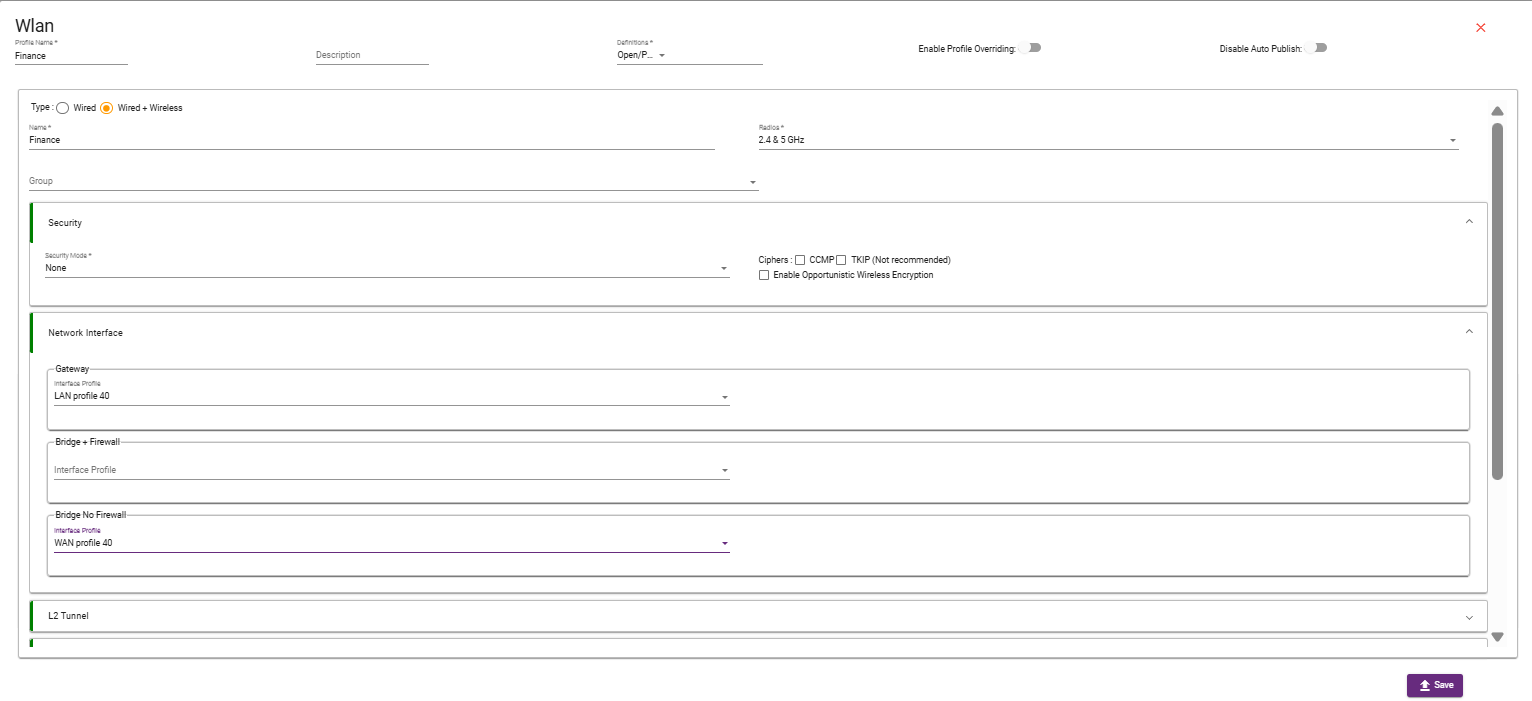

STEP 4: Finance SSID (VLAN 40)

  • Create WLAN with the desired name (Finance).
  • Select Security Group.
  • In NETWORK INTERFACE, select GATEWAY’s (LAN profile) in the gateway section and AP’s (WAN profile) in the Bridge No Firewall section. Select both profiles of VLAN-40.
  • Both profiles should be of the same VLAN that has to be broadcast.
