Device: Ray Vega
Wi-Fi Throughput
1. Test Objective
To measure and compare wireless throughput (download/upload speeds) over two different WLAN profiles (5 GHz and 2.4 GHz) and running an internal OpenSpeedTest server. ( https://openspeedtest.com/selfhosted-speedtest )
2. Server Setup
Parameter | Details |
Device | Gateway Device (Router with LAN & WLAN) |
Service | openspeedtest-server |
Deployment | Local (running directly on Access points) |
Port | 3000 |
3. WLAN Profiles
WLAN Profile | Frequency | Subnet | SSID |
Profile 1 | 5 GHz | 192.168.160.1/24 | 5ghz |
Profile 2 | 2.4 GHz | 192.168.160.1/24 | 2.4ghz |
4. Client Test Setup
Parameter | Details |
Client Device | Wi-Fi enabled device (laptop/phone) |
Browser | Chrome / Firefox / Safari |
Test Tool | OpenSpeedTest Web UI |
5. Test Cases
Test Case 1: 5 GHz Band Throughput
SSID: 5ghz
Gateway IP: 192.168.160.1
Steps:
Connect client to SSID: 5ghz
Open browser: http://192.168.160.136:3000
Start OpenSpeedTest
Record results
Test Case 2: 2.4 GHz Band Throughput
SSID: 2.4ghz
Gateway IP: 192.168.160.1
Steps:
Connect client to SSID: 2.4 ghz
Open browser: http://192.168.160.136:3000
Start OpenSpeedTest
Record results
6. Test Results Table
Test Case | SSID | Frequency | Gateway IP | Download (Mbps) | Upload (Mbps) | Ping (ms) |

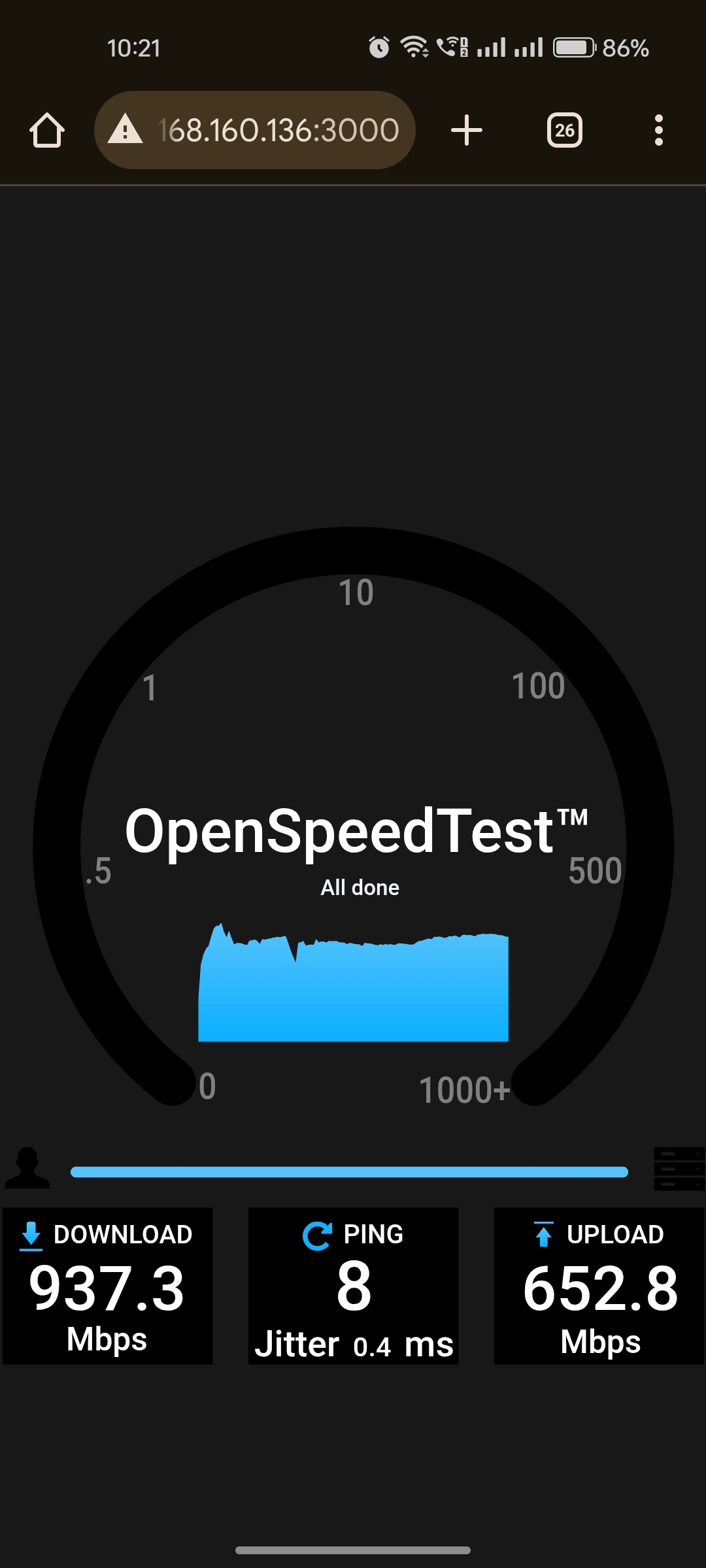

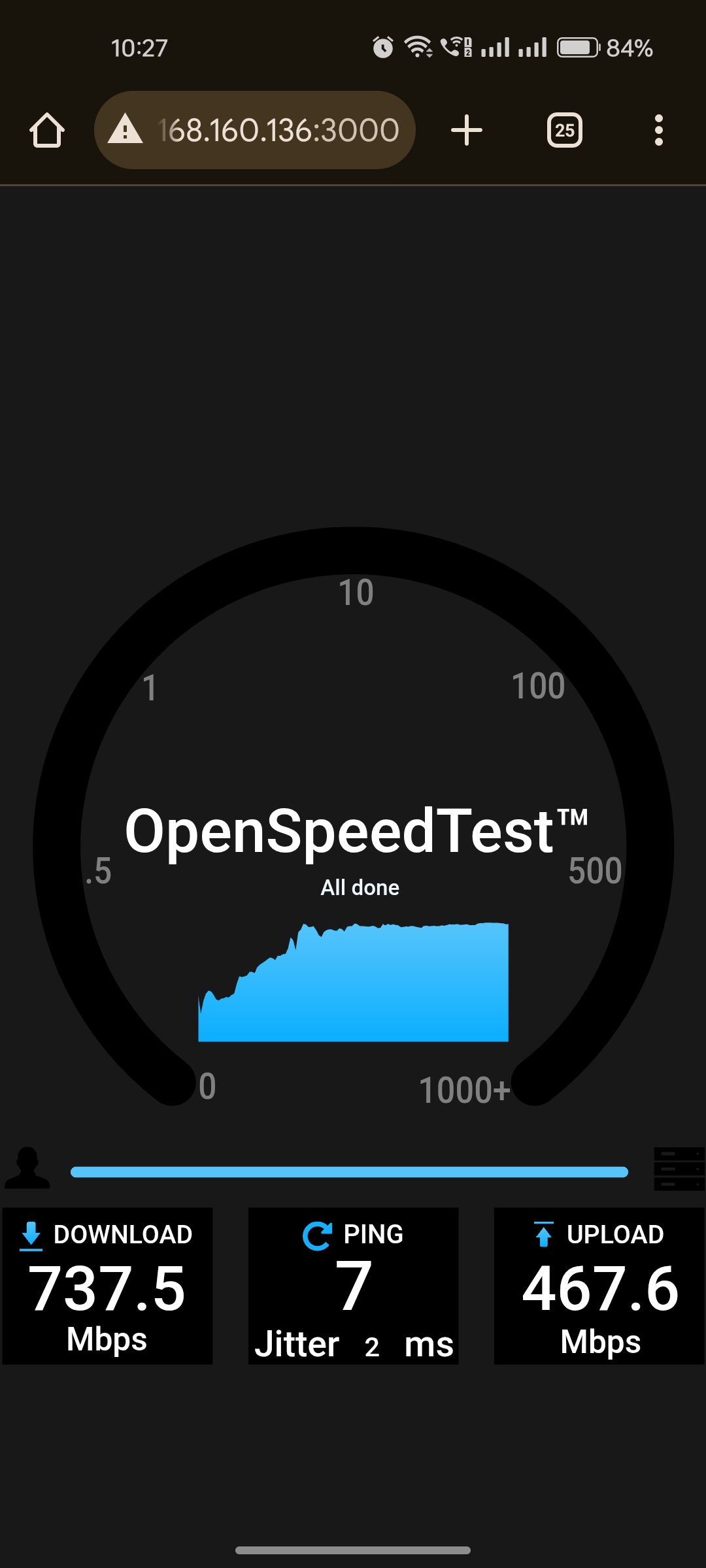

TC-01 | 5ghz | 5 Record results GHz | 192.168.160.1 | 737.5 - 937.5 Mbps | 46.8 - 667.7 Mbps | 8 |

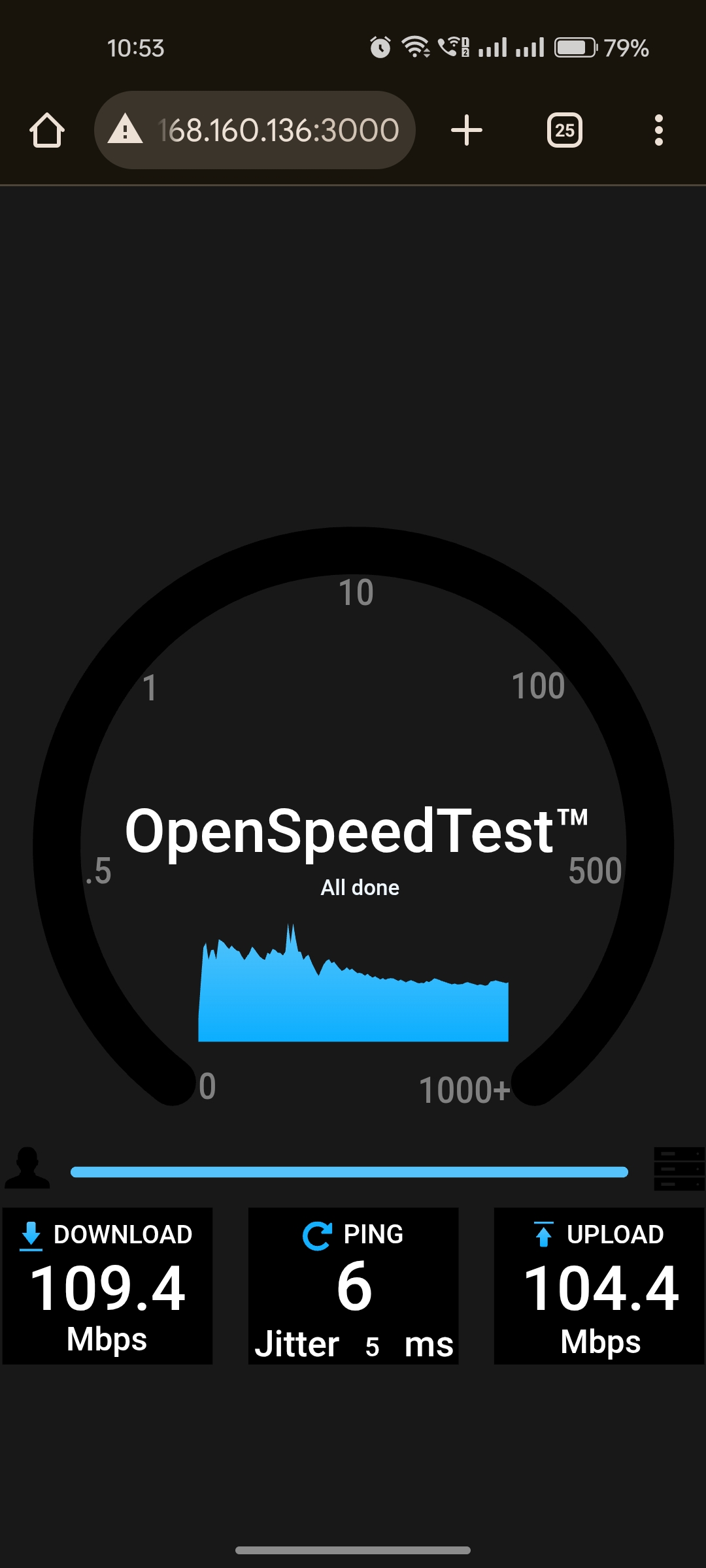

TC-02 | 2.4ghz | 2.4 GHz | 192.168.160.1 | 100.5 - 109.2 Mbps | 90.6 - 104.5 Mbps | 6 |
Wired Throughput (Bridge mode)
Gateway IP: 192.168.160.1
Steps:

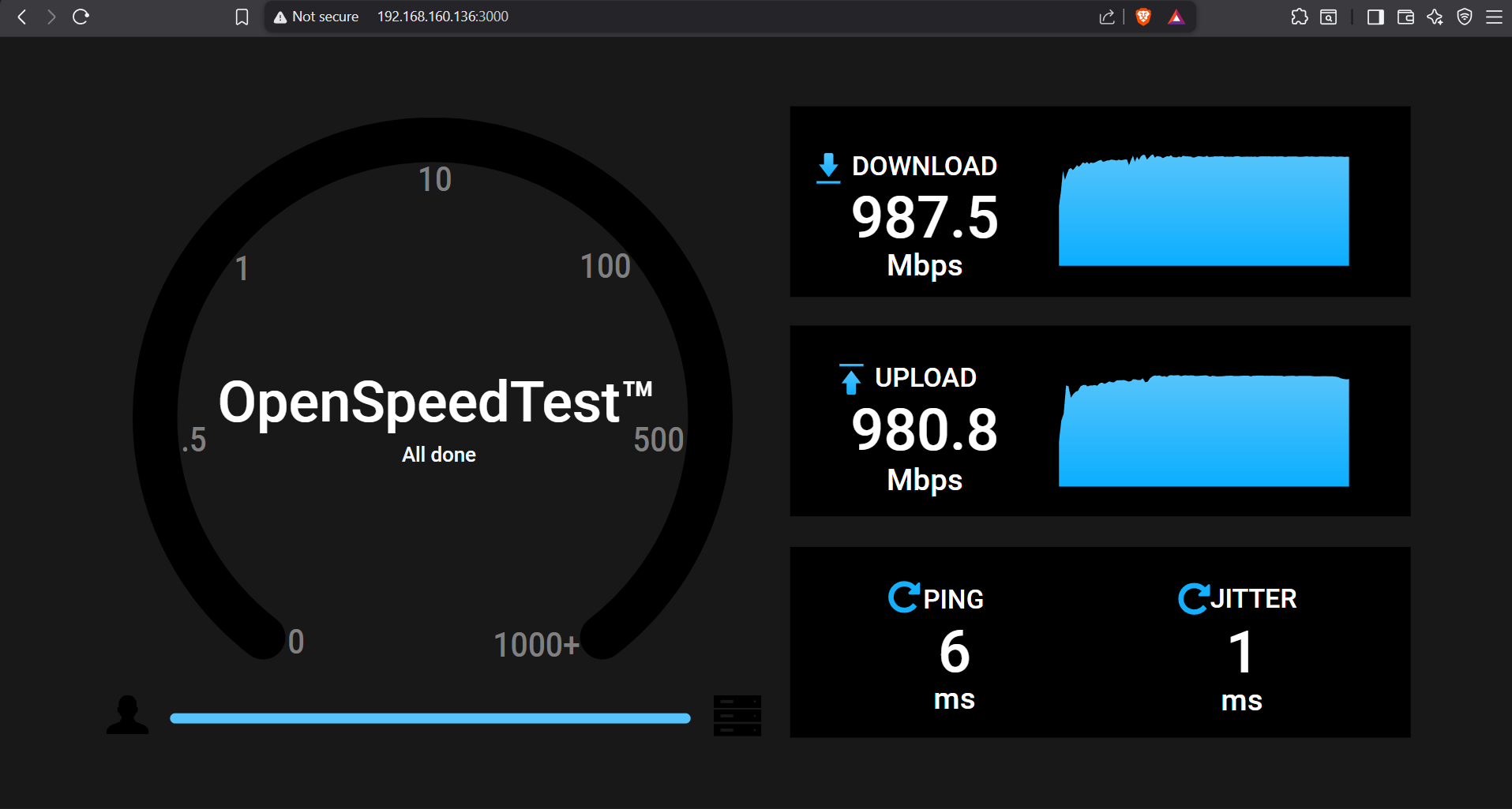

Testing was performed directly through the port to measure throughput.
Open browser: http://192.168.160.136:3000
Start OpenSpeedTest
Record results:
Client Connectivity Test
Steps:

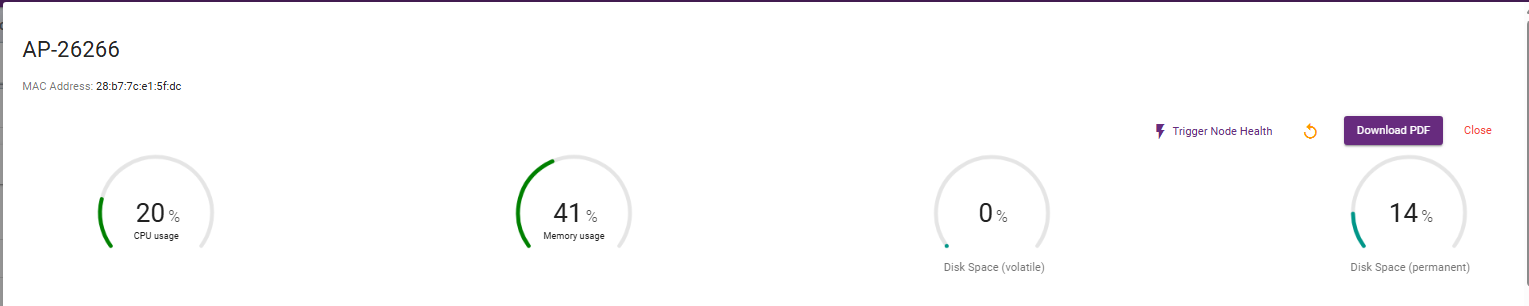

Access Point IP Assignment
The access point assigns an IP address to each client. (Documents)User Connections

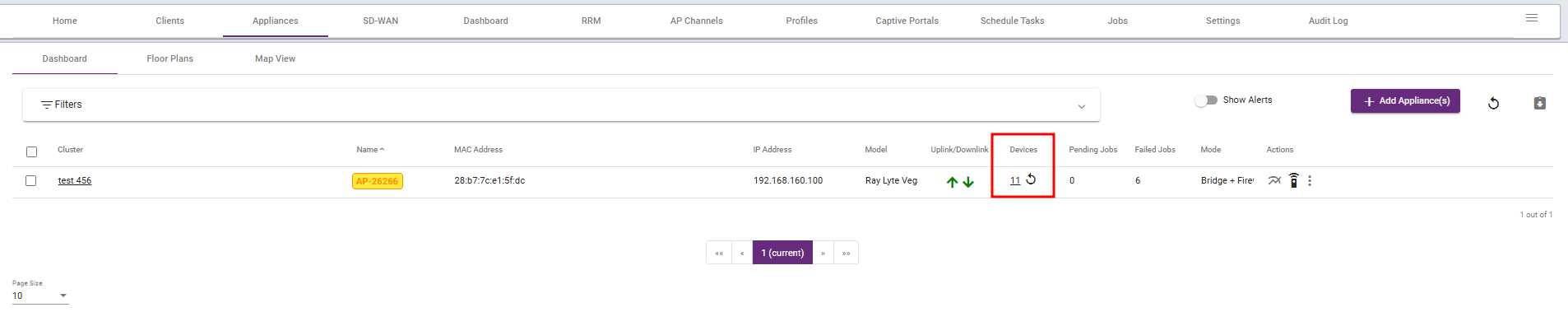

Currently, 11 users are connected to this access point.Record results:
